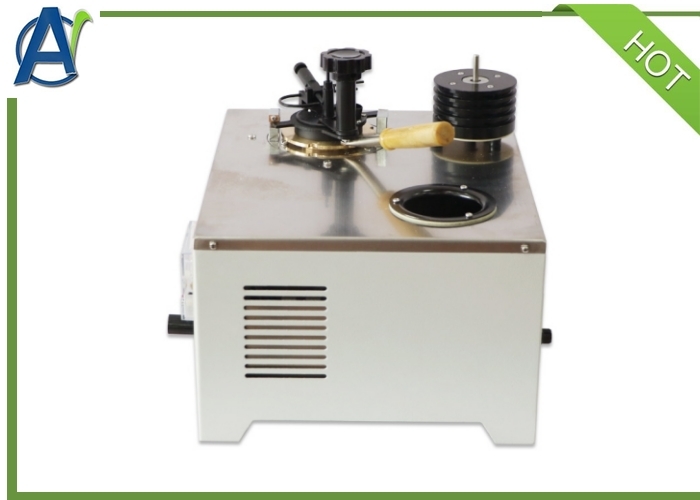

ASTM D93 Closed Cup Flash Point Test Equipment

ASTM D93 Closed Cup Flash Point Test Equipment
ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment ASTM D93 Closed Cup Flash Point Test Equipment
Informasi Dasar
Tempat asal: CINA
Nama merek: Advanced Instruments
Sertifikasi: ISO 2719; ASTM D93
Nomor model: PMCC-M
Kuantitas min Order: 1 Set
Harga: US$500-1000/set
Kemasan rincian: Kasus Kayu Lapis
Waktu pengiriman: 15 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100set per bulan
Harga terbaik Hubungi sekarang
Resolusi Tegangan Pasokan: AC(220±10%)V 50Hz Mode Pemanasan: Penyesuaian manual
Total Konsumsi Daya: ≤650W Ukuran: 330mm×310mm×250mm (P×L×T)
Berat Bersih: 8.5kg Standar uji: ASTM D93;ISO 2719
Menyoroti:

Flash Point Test Equipment

,

Closed Cup Flash Point Testing Machine

,

Closed Cup Flash Point Test Equipment


Product Description
ASTM D93 Closed Cup Flash Point Tester is designed and made as per the National Standard of People's Republic of China GB/T261-2008 "Test Methods for Flash Point of Petroleum Products by Pensky-Martens Closed Cup Method". ASTM D93 Closed Cup Flash Point Tester is suitable to determine closed cup flash point of petroleum products in the range of higher than 40 ℃ as per GB/T261-2008.

Technical Specification and Parameters
Power supply
AC(220±10%)V,50Hz
Heating device
(1) The furnace is made of SiC materials; its power is 600 W
(2) Heating power is adjustable in the range of 0 W~600W
Sample temperature rising rate
1℃~12℃ per minute, manually controlled
Electric stirring device
(1) Stirring motor: 45TYZ Motor
(2) Driving device: by a soft shaft
(3) Stirring blade specification: 8 mm×40 mm
Stirring speed
As per the requirement of GB/T261-2008
(1) 90 RPM~120 RPM for procedure A
(2) 250±10 RPM for procedure B
Standard oil cup
As per the requirement of GB/T261-2008;
(1) Inner diameter: 50.7 mm~50.8 mm
(2) Depth: 55.7 mm~56.0 mm
(3) Depth of marked line in the oil cup: 33.9 mm~34.3 mm
(4) Oil sample cubage: about 70 ml
Flame application device
(1) Gas source: Coal gas (or other civilian combustible gas)
(2) Aperture of flame application device: 0.8 mm
Thermometer
Rod type Mercury Thermometer, as per GB/T261-2008;
(1) Temperature range: -5℃~110℃, Each scale division is 0.5 ℃
(2) Temperature range: 20℃~150℃, Each scale division is 1.0 ℃
(3) Temperature range: 90℃~370℃, Each scale division is 2 ℃
Ambient temperature
≤35℃
Relative humidity
≤85%
Total power consumption
not more than 650 W



ASTM D93 Closed Cup Flash Point Test Equipment 0

Full set and technical documents
Full set of instrument
No.
Name
Unit
Quantity
Remark
1
Main unit
Set
1

2
Thermometer -5℃~110℃, each scale division is 0.5℃;
Piece
1
As per GB/T 261-2008
3
Thermometer 20℃~150℃, each scale division is 1.0℃;
Piece
1

4
Thermometer 90℃~370℃, each scale division is 2℃;
Piece
1

5
Soft shaft
Piece
1

6
Silica gel tube φ3 0.5 m
Piece
3
1 is spare
7
Thermometer adapter
Set
1

8
Thermometer liner band (cut suitable length of liner band to wrap the lower end of the thermometer, so that the thermometer is just inserted into the thermometer adaptor)
Piece
5

Technical documents
(1) Operation Manual 1 piece
(2) Quality Certificate 1 piece
(3) Repair Guarantee 1 piece

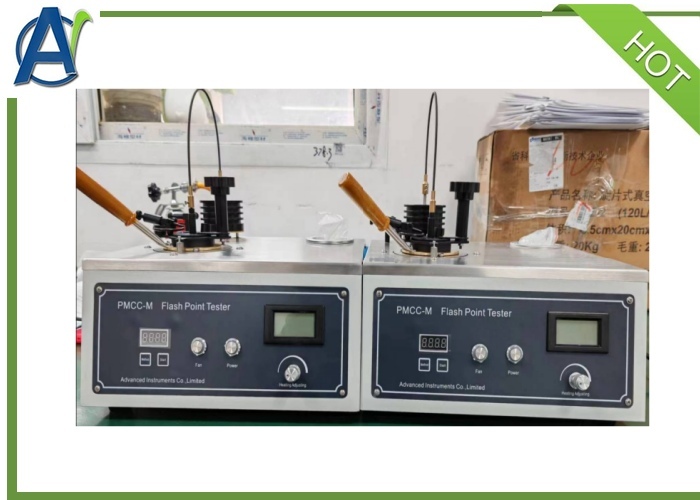

Package Photos



ASTM D93 Closed Cup Flash Point Test Equipment 1



FAQ
1.What's the delivery time?
About 15 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
