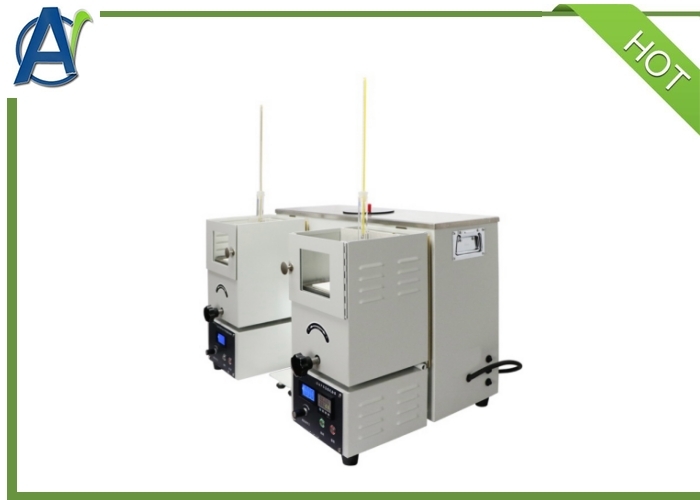

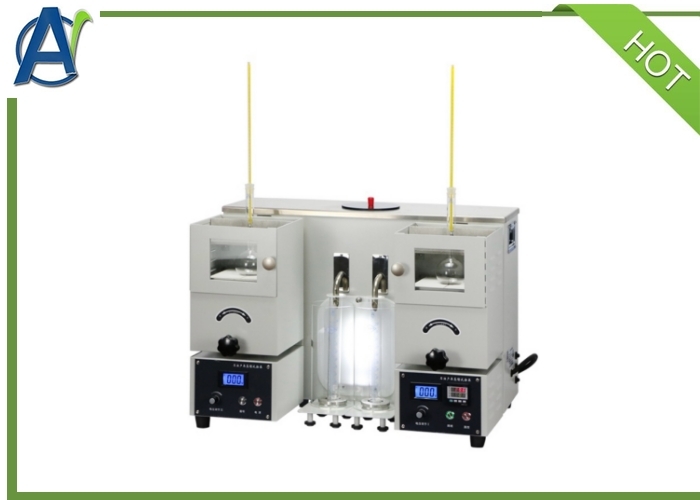

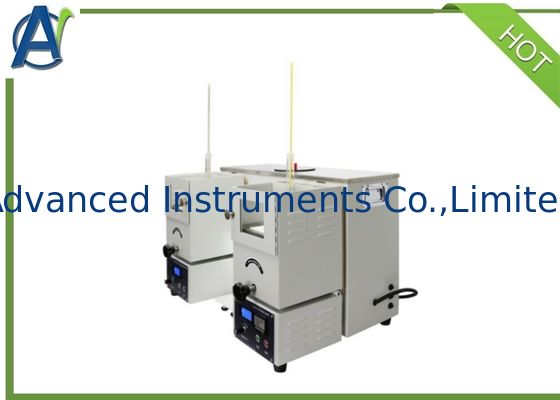

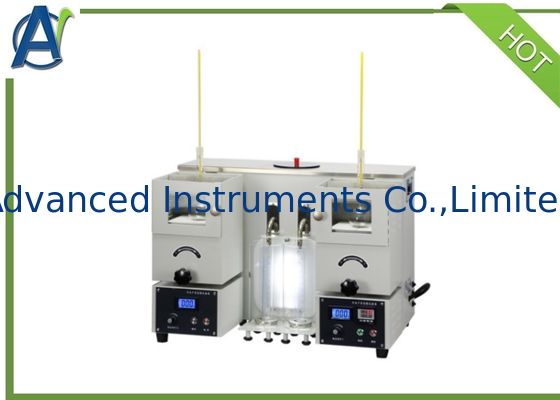

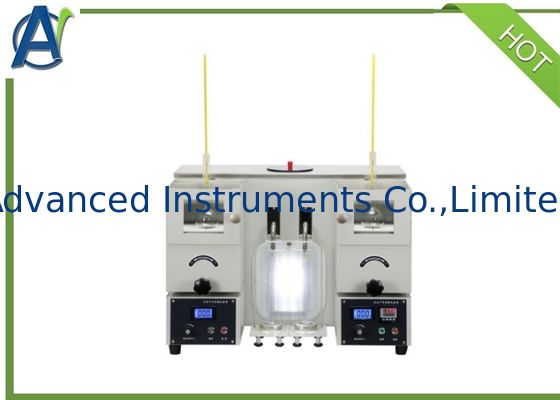

ASTM D86 Petroleum Products Double-Tube Distillation Tester

Informasi Dasar

Tempat asal:	Tiongkok
Nama merek:	Advanced Instruments
Sertifikasi:	ISO9001
Nomor model:	DA-II

Kuantitas min Order:	1 set
Harga:	US$1000-2000/set
Kemasan rincian:	kasus kayu lapis
Waktu pengiriman:	15 hari
Syarat-syarat pembayaran:	T/t, l/c, d/p
Menyediakan kemampuan:	100set per bulan

Harga terbaik Hubungi sekarang

Daya pemanas:	1300W×2 (dapat disesuaikan terus menerus)	Standar uji:	ASTM D86,GB/T6536
Flask Distilasi:	125ml	Kelembaban relatif:	<85%
Menampilkan:	DIPIMPIN	Catu Daya:	AC 220V±10%/50Hz
Aplikasi:	bensin, bahan bakar jet, nafta, minyak solar	Deteksi:	Distilasi
Akurasi pengendalian suhu:	±0,5 ℃
Menyoroti:	Lab Device Distillation Testing Equipment , Double units Distillation Apparaus , Laboratory Oil Distillation Analyzer

Product Description

The Petroleum Products Double-Tube Distillation Tester is designed and made as per the National Standard of People's Republic of China GB/T6536 "Test Methods for Distillation Characteristics of Petroleum Products". It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.

This Distillation Instrument adopts double-unit type, so you can make test for one piece of sample, and you can make tests for two pieces of similar samples or different samples at the same time. It is much more efficient. It is the best choice for companies having more test tasks everyday.

Product Advantages

1.This Petroleum Products Distillation Apparatus is a double-tube working mode, which can be tested independently of a single tube or two samples of the same specification at the same time, which greatly improves the work efficiency.

2.This Distillation Testing Equipment adopts a special heating furnace form without open flame to ensure the safety of the test.

3.The specimen heating is composed of two sets of independent control circuits, and the user can adjust the heating power of each set of control box according to different requirements.

4.The condensate tube water bath has a temperature control function, which can be arbitrarily set and adjusted within the range of (room temperature +10)°C~60°C, and the temperature in the bath is uniform to meet the requirements of the test.

5.High-precision temperature controller and sensor are used to make the temperature control accuracy reach ±0.5°C.

6.The voltage regulation of the LCD voltmeter is adopted, and the heating power is continuously adjustable, which is clear and intuitive.

7. The stainless steel design structure of the 304 condensing tank is corrosion-resistant and has a long service life.

The Technical Specifications and Parameters

Operating power supply	AC(220±10%)V 50Hz
The power consumption of the whole machine	≤4000W
Distillation flask	125 ml (It is in accord with the GB/T 6536)
Heating power	1300W×2 (The heating power can be adjusted continuously)
Graduated flask	100 ml, scale division is 1 ml
Thermometer	Total immersion type Scale range is -2~300 ℃ and -2~400 ℃
Electrical furnace plate	made by SiC The diameter of hole is Φ32 mm, Φ38mm or Φ50mm.
Temperature controller	a.Range: 10 ℃ higher than ambient temperature ~60 ℃. b.Temperature controlling accuracy: ±0.5 ℃ c. Display mode: By LED
Ambient temperature	≤35 ℃
Relative humidity	≤85%

Main technical characteristics

1.The electric controlling part is composed of two sets of controlling cases. You can adjust the heating power of each controlling case as your requirement.

2.The controlling case is made by cold rolling steel plate, and there is one at each side. There is an observation window in the front of each controlling case and there is a furnace in each controlling case. Put a distillation flask on the furnace during distillation. The electric controlling part is at the bottom of controlling case.

3.The electric furnace is composed of furnace base made by SiC, heater of 1300W/220 V, and SiC plate. By rotating the up and down knob (height adjustment knob), you can change the position of furnace to adjust the relative position of distillation flask and condensing tube. The heating power can be adjusted using the voltage adjustment knob.

4.The water bath is made by stainless steel. It contains heating, temperature measuring, and stirring device. The stirring device is composed of magnetic stirring wheel and stirring motor.

5.The dimension of condensing tube is made as per GB/T6536.

ASTM D86 Petroleum Products Double-Tube Distillation Tester 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
