ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)
ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)
Informasi Dasar
Tempat asal: Cina
Nama merek: Advanced Instruments
Sertifikasi: ISO9001
Nomor model: AIC-4530
Kuantitas min Order: 1 Set
Harga: US$5,000-10,000/set
Kemasan rincian: Kasus Kayu Lapis
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: T/t, l/c, d/p
Menyediakan kemampuan: 50 set per bulan
Harga terbaik Hubungi sekarang
standar tes: ASTM D4530; ISO 10370 Jaminan: 1 Tahun penuh
Merek dagang: Instrumen Tingkat Lanjut Layanan OEM: Tersedia
bahasa: Bahasa inggris Metode Tes: Metode Mikro
Akurasi kontrol suhu: 520±2℃ Posisi kerja: 12 sampel
Modus Pemanasan: Pemanasan batang pemanas Modus koneksi: Konektor cepat baja tahan karat impor
Rentang Tekanan: 0 kPa (0 kg/cm²) ~392 kPa (4 kg/cm²) Rentang aliran: 100ml ~1000ml/menit
Botol pengumpulan cairan limbah: Botol kaca 200ml dengan antarmuka berulir Catu daya: AC 220 V, 50 Hz
Kekuatan Total: 2000W Dimensi instrumen: 550mm×500mm×590mm
Berat bersih: 35kg
Menyoroti:

ASTM D4530 micro carbon residue tester

,

ISO 10370 carbon residue test apparatus

,

automatic micro method oil test equipment

General Introduction

This Micro Carbon Residue Detection Equipment is designed and made as per GB/T17144-1997 Standard Test Method for Carbon Residue of Petroleum Products-Micromethod. It is suitable to determine the amount of carbon residue of petroleum products.

Features
  1. 1. 5-inch TFT color LCD display with screen resolution of 800×480;
  2. 2. Chinese-language operating interface with touchscreen control for easy and efficient operation;
  3. 3. Automatic control of temperature rise and gas flow, with real-time display of test progress;
  4. 4. Adopts an embedded operating system for stable and reliable performance;
  5. 5. High-temperature safety protection;
  6. 6. Editable input of sample tube and sample mass;
  7. 7. Automatic calculation of carbon residue value;
  8. 8. Stores up to 100 sets of historical data for easy query;
  9. 9. Historical data can be queried by date;
  10. 10. Coking chamber inlet orifice diameter: 1mm (12 in total).

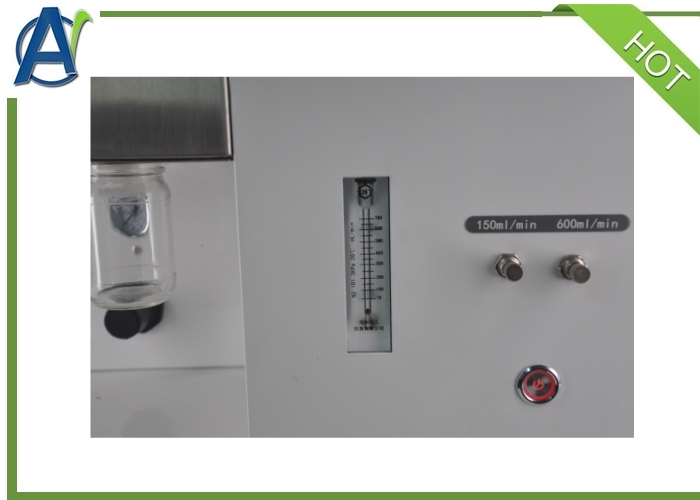

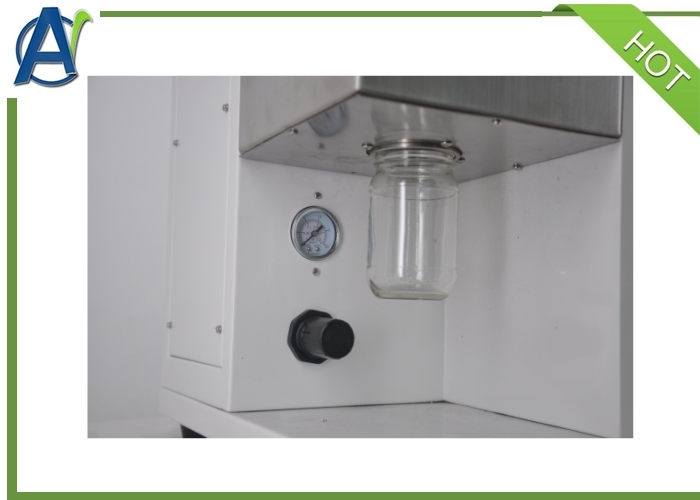

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) 0

Technical Specifications and Parameters
  1.  Applicable Standards: GB/T 17144, ASTM D4530, ISO 10370, DIN 51551
  2.  Temperature Control Accuracy: 520±2℃
  3. Working Positions: 12 samples
  4. Heating Mode: Heating rod heating, easy for maintenance
  5. Connection Mode: Imported stainless steel quick connector, leak-proof
  6.  Pressure Range: 0 kPa (0 kg/cm²) ~392 kPa (4 kg/cm²)
  7.  Flow Range: 100 ml ~1000 ml/min
  8. Waste Liquid Collection Bottle: 200 ml glass bottle with threaded interface
  9. Power Supply: AC 220 V, 50 Hz
  10. Total Power: 2000 W
  11. Instrument Dimensions: 550×500×590 mm
  12. Net Weight: 35 KG
ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) 1
FAQ
1.What's the delivery time?
About 30days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
