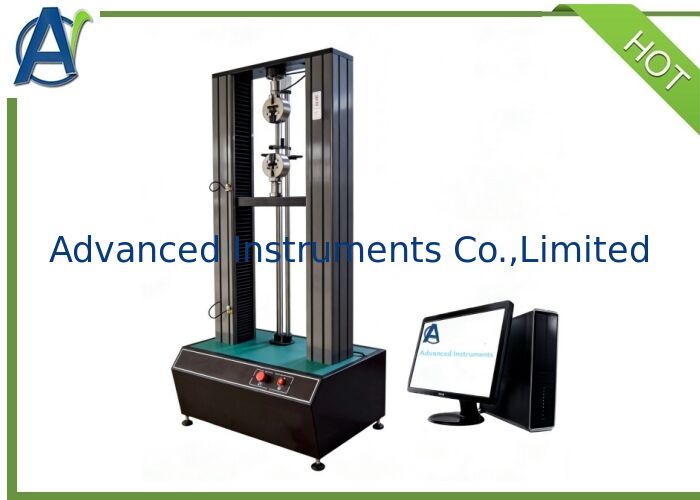

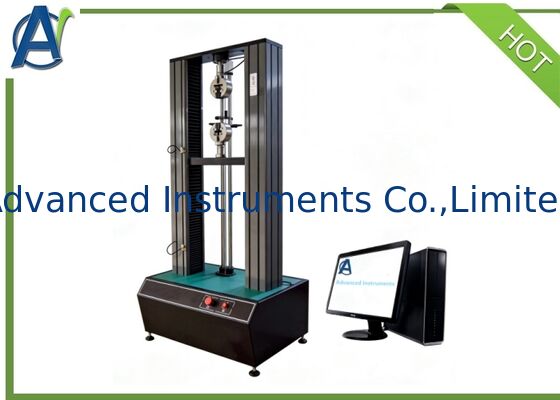

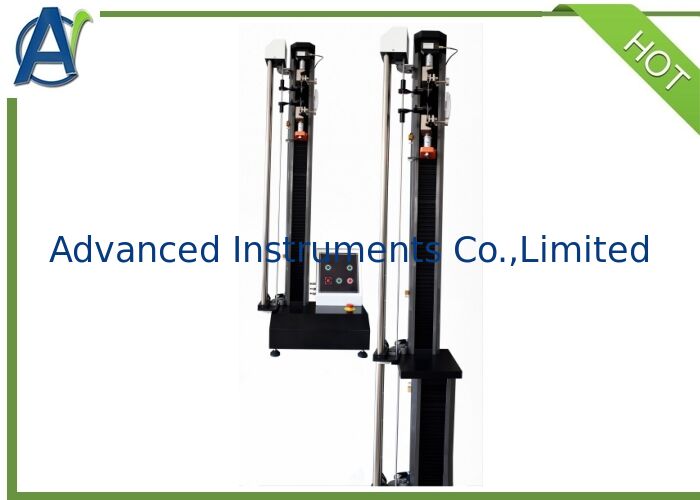

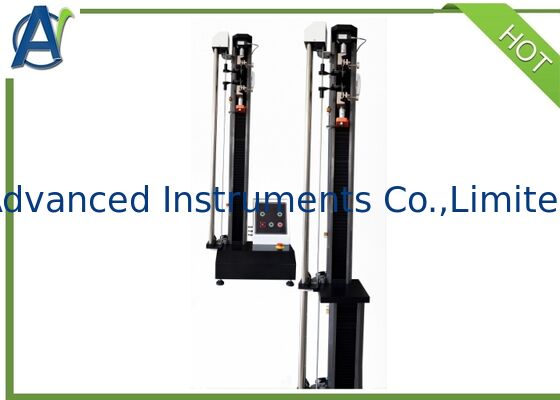

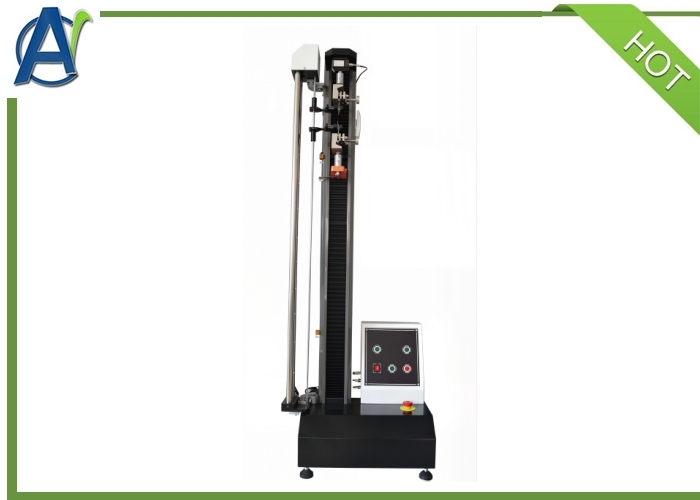

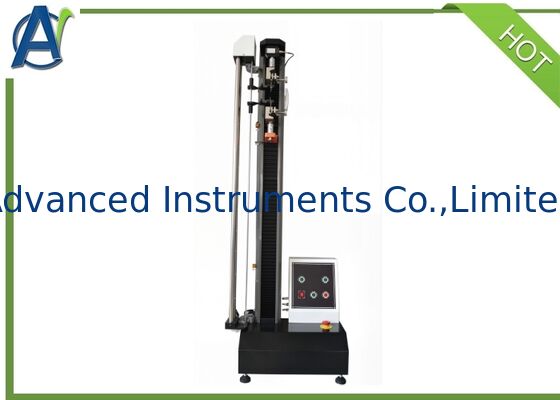

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable
ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable
Informasi Dasar
Tempat asal: Cina
Nama merek: Advanced Instruments
Sertifikasi: ISO 9513
Nomor model: AIC-21006
Kuantitas min Order: 1SET
Harga: $10000~$20000
Kemasan rincian: Kasus kayu lapis
Waktu pengiriman: 90 hari
Syarat-syarat pembayaran: L/C,T/T,D/P
Menyediakan kemampuan: 10set/bulan
Harga terbaik Hubungi sekarang
Setelah Layanan: Respon dalam 12 Jam 12 Bulan Jaminan: 1 Tahun penuh
Paket Transportasi: Kasus kayu lapis standar tes: ISO 9513
Catu daya: AC220V,50/60Hz,2A Pengukuran deformasi: Ekstensometer Perjalanan Besar
Kekuatan uji maks: 50N, 100N, 500N, 1000N, 2000N (opsional untuk pengguna) Pukulan efektif: 800mm
Uji kesalahan relatif nilai gaya: ≤ ± 1% Rentang kecepatan tes: 0~500mm/menit
Resolusi Perpindahan: 0,01mm
Menyoroti:

ISO 9513

,

Tensile Testing Machine

,

large deformation tester

General Introduction

Computer-controlled electronic tensile tester (large deformation) is widely used for hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, to test tensile, tear, peel, compression, bending and other materials research and development, inspection and test, with multiple functions, wide range of uses. The computer-controlled electronic tensile tester (large deformation) is adopted aluminum alloy enclosure, with lightweight body, beautiful appearance.

Standards:

  • ISO 9513
Technical parameters
  • Max test force: 50N, 100N, 500N, 1000N, 2000N (optional for users)
  • Effective stroke: about 800mm
  • Test force value relative error: ≤±1%
  • Test speed range: 0~500mm/min
  • Displacement resolution: 0.01mm
  • Sensor: American Transcell S type sensor
  • Power system: Japan Panasonic 400W servo motor
  • Clamps: Wave tooth type non-self-tightening clamps, 45 # steel processed, hard chrome plated surface
  • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation
  • Large deformation resolution: 0.1%
  • Ball screw: TBI2505 ball screw made in Taiwan, high transmission accuracy, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity
  • Guide rod bearing: NSK ball linear bearing imported from Japan
  • Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 15
  • Guide rod: made of two φ25 bearing steels with surface hardening, the surface hardness can reach above HRC58
  • Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry
  • Machine body surface treatment: Adopt the DuPont powder made in USA, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading
  • Display method: Test software +computer display
  • Section bar: one-time extrusion, generous appearance. oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance
  • Auxiliary remote control for clamps lifting
  • Safety device: overload stop function, up and down travel limiter, sample break stop function

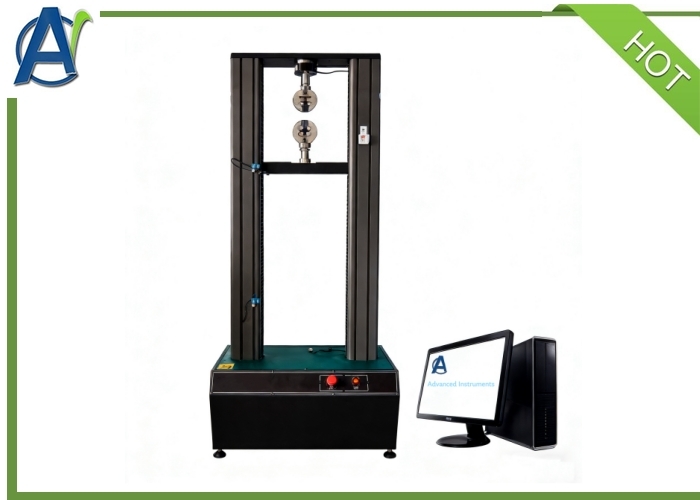

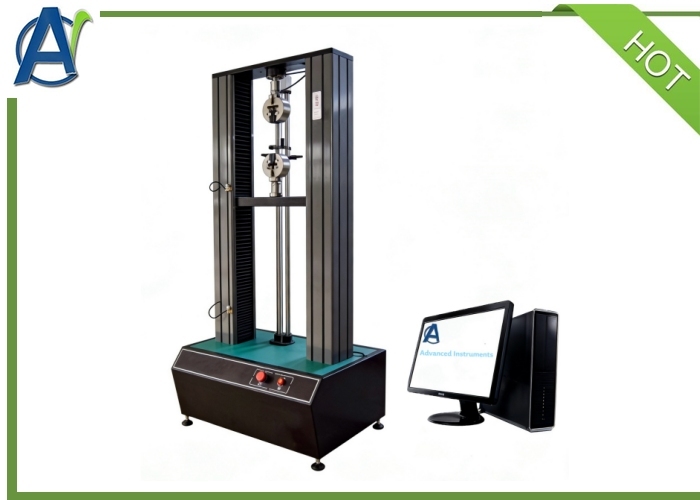

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable 0
Technical specifications
  • Overall Dimensions:500mm(W)x420mm(D)x1660mm(H)
  • Power supply:AC220V, 50/60Hz, 21A

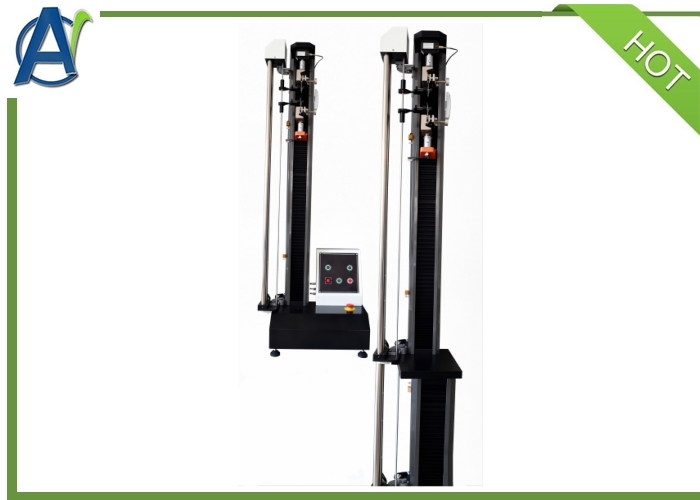

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable 1
FAQ
  1. What's the delivery time?
    About 90days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
